Telecom Tier-1 Supplier • UL94 V-0 Flammability

Telecom-Grade PVC Wiring Ducts & Cable Management

High-impact rigid PVC slotted wiring ducts and solid cable trunking engineered for electrical switchgear, industrial control panels, and high-density data centers. Low MOQ trials, direct factory pricing, and up to 40% container volume saved with nested packaging.

🔥
UL94 V-0 Self-Extinguish Fire retardant in ≤10 seconds
⚡
≥ 25 kV/mm Dielectric High electrical insulation safety
❄️
-25°C to +75°C Range Zero cracking in harsh climate
📦
Nested Space-Saving Save 35%-40% ocean freight
Get Fast Quotation (FOB / CIF) Order Free Sample Box

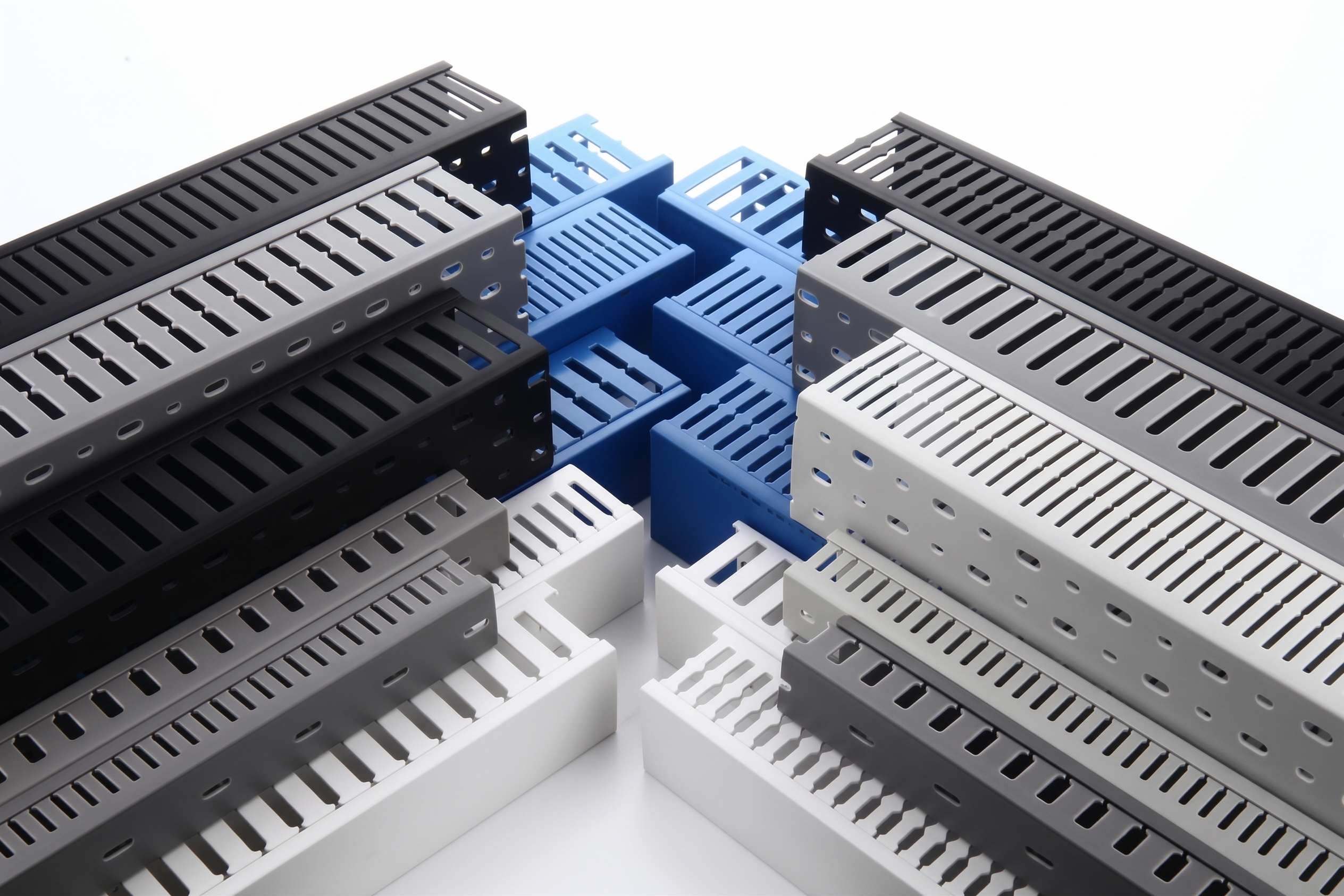

iTUNG Cable Trunking Series
100%
Quality Inspected
Lead-Free • RoHS • REACH Compliant
Engineered for Reliability

Built to Meet Rigorous Industrial Standards

Designed by control panel specialists to eliminate burrs, prevent wire insulation damage, and cut installation time in half.

🛡️

UL94 V-0 Fire Resistance

Formulated with premium fire-retardant modifiers. Flammability self-extinguishes within 10 seconds of flame removal with zero toxic molten dripping.

✂️

Burr-Free Flush Snap-Off

Calibrated upper and lower break-lines allow easy hand break-out of fingers without wire-damaging burrs or need for cutting snips.

🔒

Anti-Vibration Cover Lock

Unique non-slip tongue-and-groove lid geometry holds firmly even under cable pack pressure, upside-down mounting, or severe machine vibration.

📐

DIN Standard Base Punching

Precision elongated slotting (4.5×15mm) meets DIN 43659 mounting grids, allowing rapid mounting onto backplates without on-site drilling.

Product Lineup

Standardized Cable Trunking Configurations

Full range covering 16×16mm mini profiles up to 100×100mm heavy-duty backbone trunking across 50 standard models.

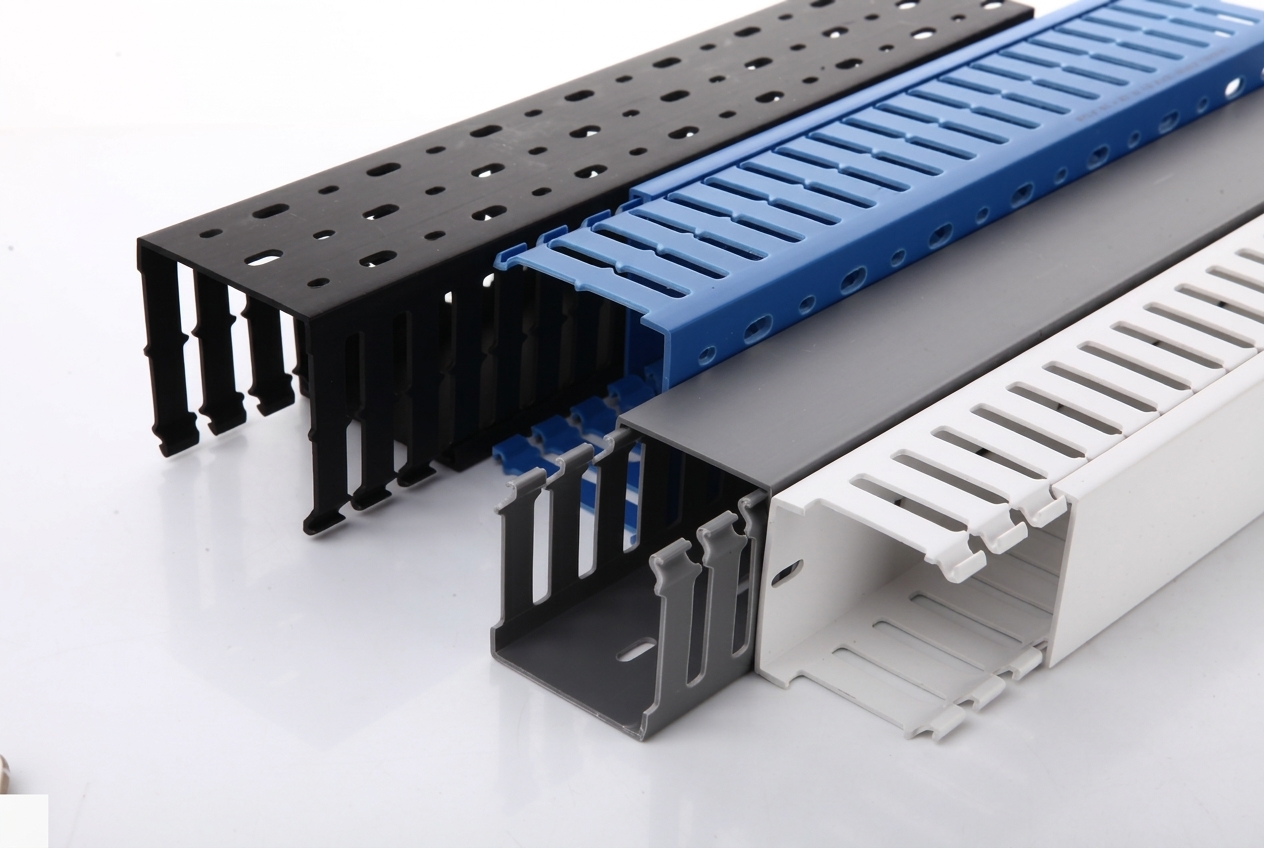

Standard Slotted Cable Duct Most Popular

Standard Slotted Wiring Duct

Wide finger slot (8mm pitch) designed for standard industrial control cabinets, switchgear, and motor control centers.

Slot: 8 mm (S) 50 Standard Models Lengths: 2.0m / 2.9m
Inquire Sizes

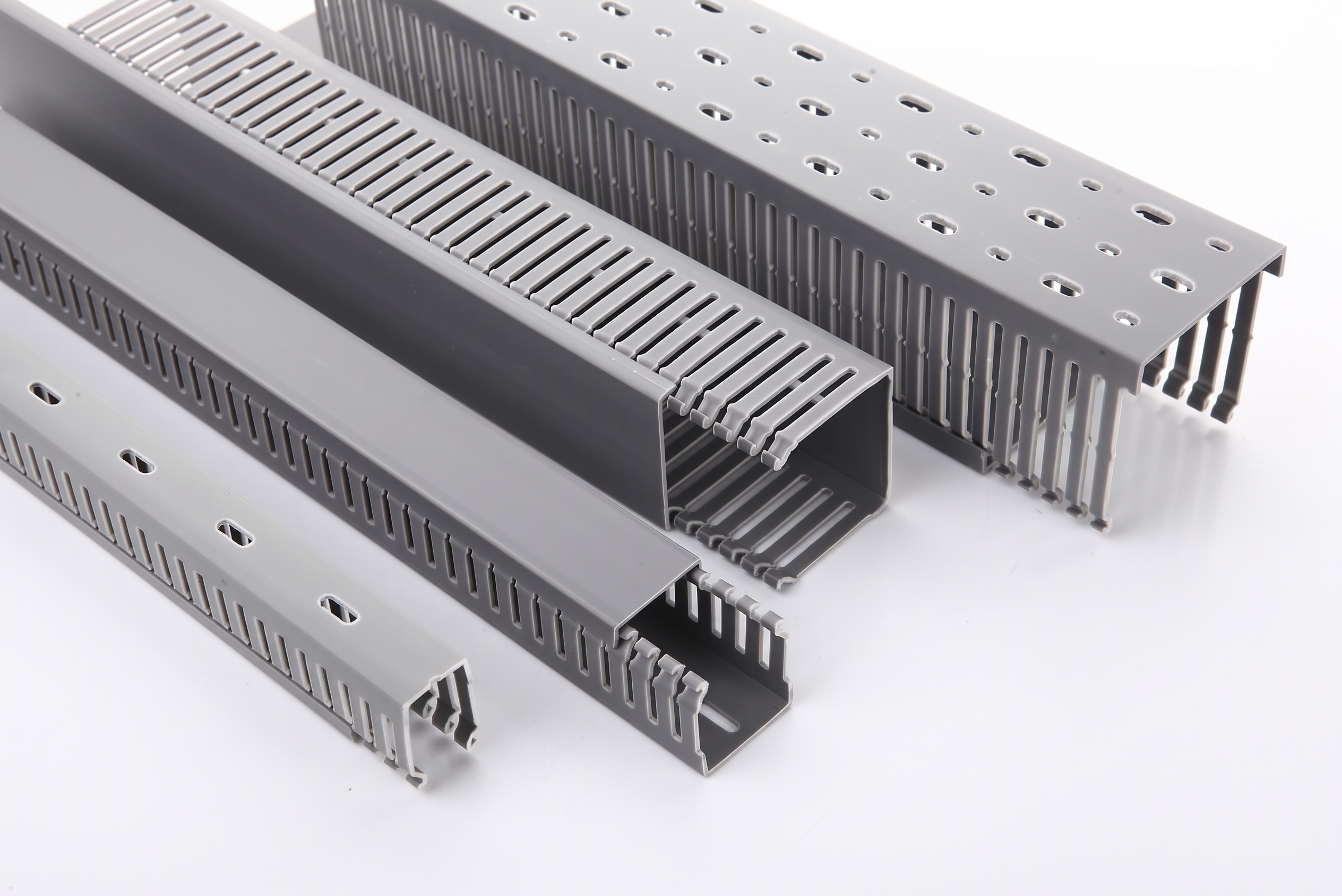

High-Density Narrow Slot Duct High-Density

High-Density Narrow Slot Duct

Narrow finger pitch (4mm / 6mm) perfectly aligned with compact PLC I/O racks, terminal blocks, and electronic relays.

Slot: 4 mm Anti-Sag Fingers Tight Wiring Spacing
Inquire Sizes

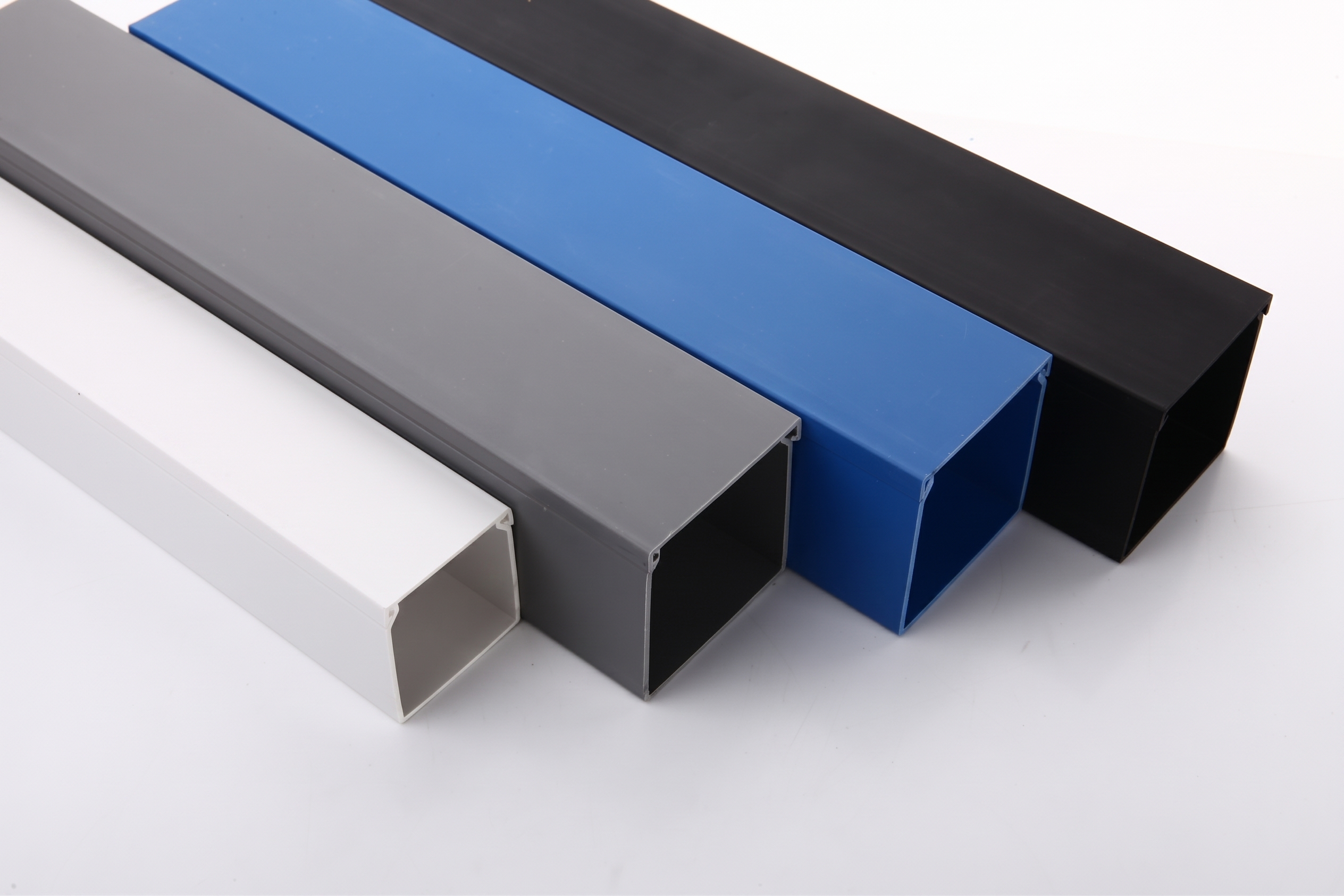

Solid Wall Cable Trunking Harsh Environment

Solid Wall Cable Trunking

Unslotted continuous sidewall protects cables from dust, moisture, and accidental physical damage in external cable routing.

Dust & Splash Proof Smooth Sidewalls Clean Room Ready
Inquire Sizes

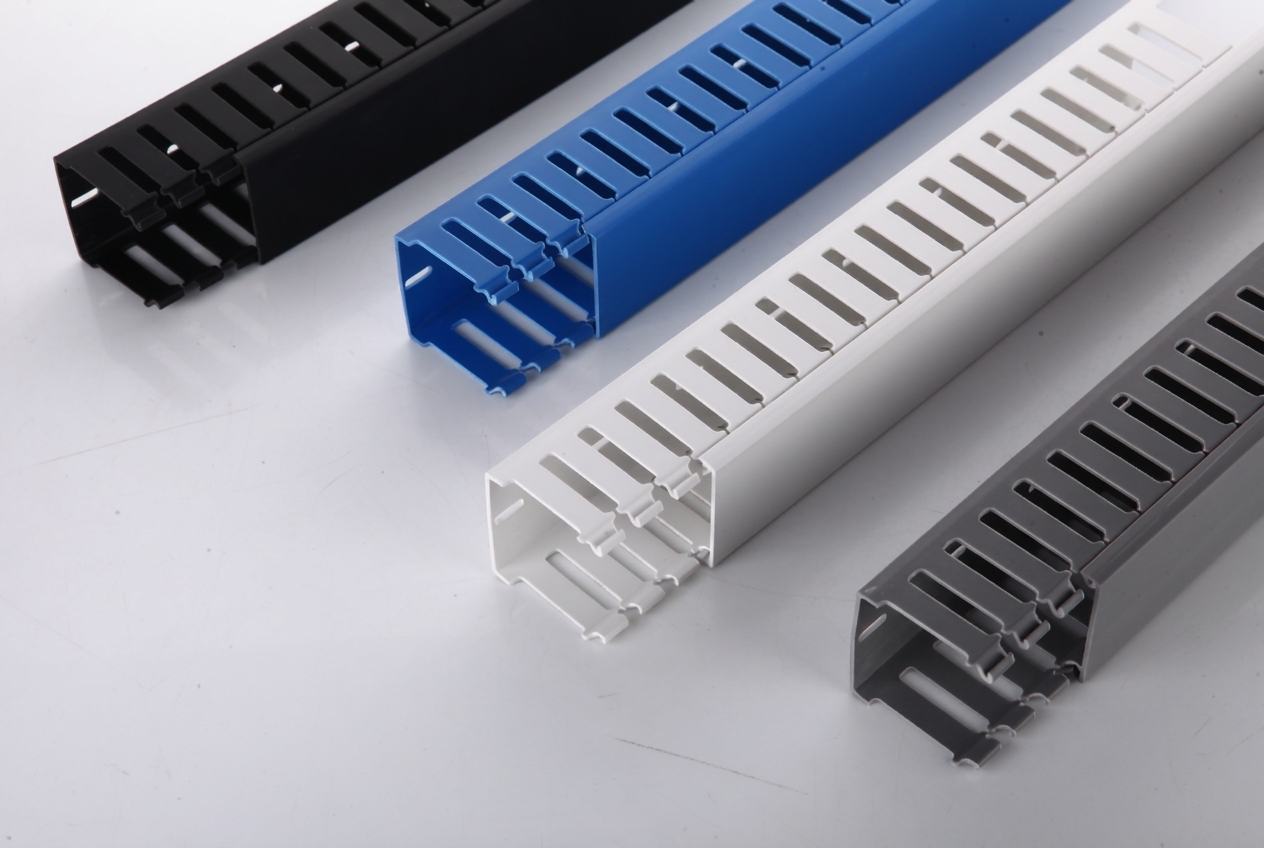

Standard & Custom Colors

Industrial Color Codings Ready

Available in 4 standard international colors: Industrial Gray (RAL 7030), Clean White (RAL 9003), Intrinsically Safe Blue (IEC 60079-11), and UV-Stabilized Deep Black.

Gray White Blue (IS) Black
Four Colors Cable Trunking

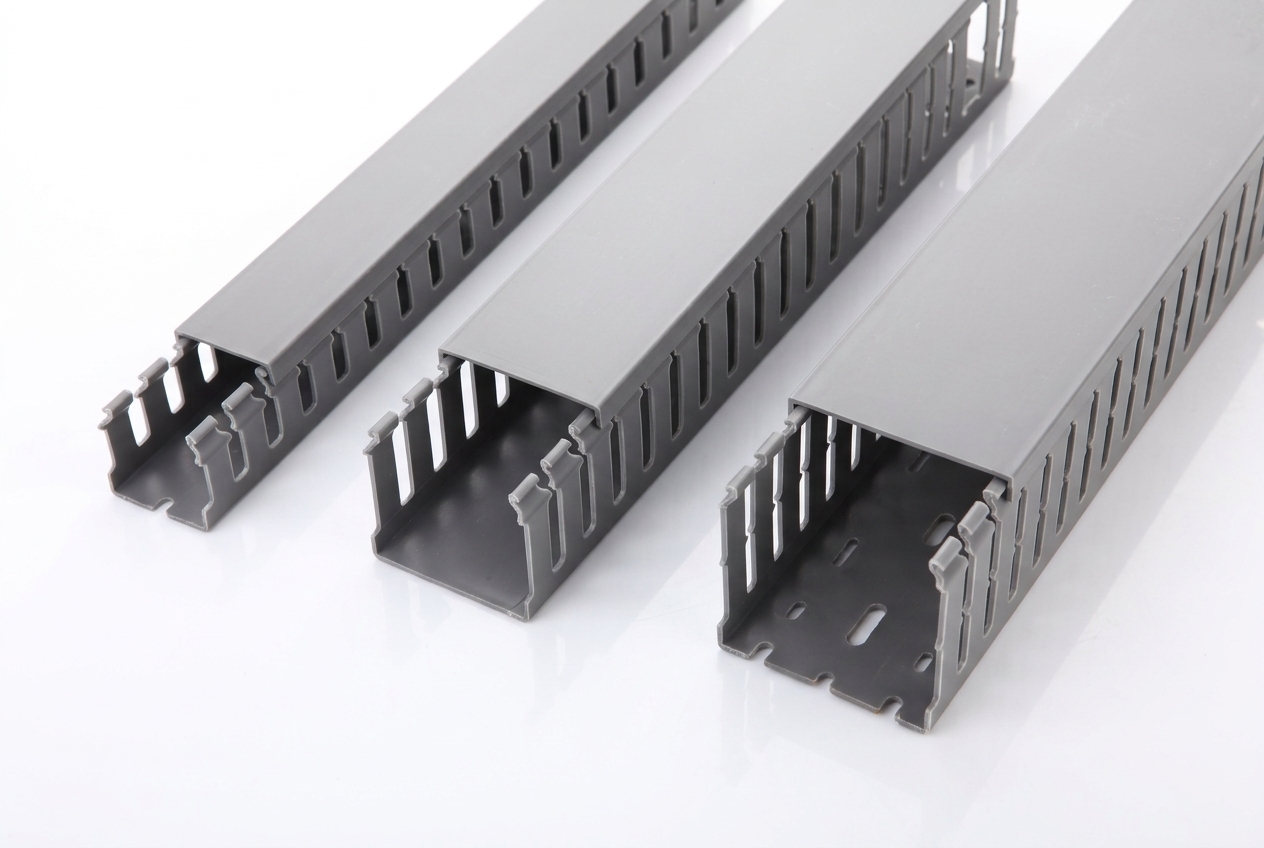

Nested Modular Cable Duct Packing
Ocean Freight Optimization

Cut Up to 40% Shipping Costs via Nested Packaging

Because wiring ducts are hollow profiles, shipping unfilled volume by sea container is extremely costly. iTUNG's precision calibrated inner/outer wall tolerances allow small duct profiles to be systematically nested inside larger trunking.

-35% ~ 40%
Container CBM Reduction
1,500+ kg
Extra Payload per 40HQ

Example nesting scheme: IT-2525 nested into IT-6080, or IT-1616 into IT-4060. Barcoded neutral packaging with clear separation labels prevents job-site mix-ups.

Calculate Container Loading Plan
Technical Sizing

Standard Model Selection Matrix

Showing 10 core representative models by default. Click "More Models (Show All 50 Models)" to view the complete 16×16mm – 100×100mm catalog. All models standard in 2.0m length (custom 2.9m available).

Unique Part Number System: IT - [Slot: S/N/W] - [Size: W×H] - [Color: GY/WH/BL/BK] - [Length: 20/29]
Slot Mapping: S = Slotted 8mm • N = Narrow 4mm • W = Solid Wall
Base Series Dimensions (W × H) Slot & Part Number (Order Code) Standard Length Packing (Meters) Pcs / Ctn Standard Colors Popularity
IT-1616 16 × 16 mm IT-S-1616-□ (Slotted 8mm) 2.0m / 2.9m 200 m 100 pcs GY / WH / BL / BK Core Mini
IT-2020 20 × 20 mm IT-N-2020-□ (Narrow 4mm) 2.0m / 2.9m 140 m 70 pcs GY / WH / BL / BK Standard
IT-2030 20 × 30 mm IT-N-2030-□ (Narrow 4mm) 2.0m / 2.9m 128 m 64 pcs GY / WH / BL / BK Standard
IT-2525 25 × 25 mm IT-S-2525-□ (Slotted) / IT-N-2525-□ (Narrow) / IT-W-2525-□ (Solid) 2.0m / 2.9m 120 m 60 pcs GY / WH / BL / BK ★ HOT Seller
IT-2530 25 × 30 mm IT-S-2530-□ (Slotted) / IT-N-2530-□ (Narrow) / IT-W-2530-□ (Solid) 2.0m / 2.9m 100 m 50 pcs GY / WH / BL / BK Standard
IT-2540 25 × 40 mm IT-S-2540-□ (Slotted) / IT-N-2540-□ (Narrow) 2.0m / 2.9m 112 m 56 pcs GY / WH / BL / BK ★ HOT Seller
IT-2545 25 × 45 mm IT-S-2545-□ (Slotted) / IT-N-2545-□ (Narrow) / IT-W-2545-□ (Solid) 2.0m / 2.9m 100 m 50 pcs GY / WH / BL / BK Standard
IT-2550 25 × 50 mm IT-S-2550-□ (Slotted) / IT-N-2550-□ (Narrow) / IT-W-2550-□ (Solid) 2.0m / 2.9m 100 m 50 pcs GY / WH / BL / BK Standard
IT-2560 25 × 60 mm IT-S-2560-□ (Slotted) / IT-N-2560-□ (Narrow) / IT-W-2560-□ (Solid) 2.0m / 2.9m 100 m 50 pcs GY / WH / BL / BK Standard
IT-2565 25 × 65 mm IT-S-2565-□ (Slotted) / IT-N-2565-□ (Narrow) 2.0m / 2.9m 88 m 44 pcs GY / WH / BL / BK Standard
IT-2580 25 × 80 mm IT-S-2580-□ (Slotted) / IT-N-2580-□ (Narrow) / IT-W-2580-□ (Solid) 2.0m / 2.9m 72 m 36 pcs GY / WH / BL / BK Standard
IT-3030 30 × 30 mm IT-S-3030-□ (Slotted) / IT-N-3030-□ (Narrow) / IT-W-3030-□ (Solid) 2.0m / 2.9m 120 m 60 pcs GY / WH / BL / BK Standard
IT-3040 30 × 40 mm IT-S-3040-□ (Slotted) / IT-N-3040-□ (Narrow) / IT-W-3040-□ (Solid) 2.0m / 2.9m 100 m 50 pcs GY / WH / BL / BK Standard
IT-3050 30 × 50 mm IT-S-3050-□ (Slotted) / IT-N-3050-□ (Narrow) / IT-W-3050-□ (Solid) 2.0m / 2.9m 84 m 42 pcs GY / WH / BL / BK Core Standard
IT-3060 30 × 60 mm IT-S-3060-□ (Slotted) / IT-N-3060-□ (Narrow) / IT-W-3060-□ (Solid) 2.0m / 2.9m 84 m 42 pcs GY / WH / BL / BK Standard
IT-3080 30 × 80 mm IT-S-3080-□ (Slotted) / IT-N-3080-□ (Narrow) / IT-W-3080-□ (Solid) 2.0m / 2.9m 56 m 28 pcs GY / WH / BL / BK Standard
IT-3333 33 × 33 mm IT-S-3333-□ (Slotted) / IT-N-3333-□ (Narrow) 2.0m / 2.9m 88 m 44 pcs GY / WH / BL / BK Standard
IT-3345 33 × 45 mm IT-S-3345-□ (Slotted) / IT-N-3345-□ (Narrow) / IT-W-3345-□ (Solid) 2.0m / 2.9m 104 m 52 pcs GY / WH / BL / BK Standard
IT-33100 33 × 100 mm IT-S-33100-□ (Slotted) / IT-N-33100-□ (Narrow) 2.0m / 2.9m 44 m 22 pcs GY / WH / BL / BK Deep Channel
IT-3365 33 × 65 mm IT-S-3365-□ (Slotted) / IT-N-3365-□ (Narrow) 2.0m / 2.9m 80 m 40 pcs GY / WH / BL / BK Standard
IT-3535 35 × 35 mm IT-S-3535-□ (Slotted) / IT-N-3535-□ (Narrow) 2.0m / 2.9m 100 m 50 pcs GY / WH / BL / BK Standard
IT-3550 35 × 50 mm IT-S-3550-□ (Slotted) / IT-N-3550-□ (Narrow) / IT-W-3550-□ (Solid) 2.0m / 2.9m 80 m 40 pcs GY / WH / BL / BK Standard
IT-3580 35 × 80 mm IT-S-3580-□ (Slotted) / IT-N-3580-□ (Narrow) / IT-W-3580-□ (Solid) 2.0m / 2.9m 56 m 28 pcs GY / WH / BL / BK Standard
IT-4025 40 × 25 mm IT-S-4025-□ (Slotted) / IT-N-4025-□ (Narrow) / IT-W-4025-□ (Solid) 2.0m / 2.9m 100 m 50 pcs GY / WH / BL / BK Standard
IT-4040 40 × 40 mm IT-S-4040-□ (Slotted) / IT-N-4040-□ (Narrow) / IT-W-4040-□ (Solid) 2.0m / 2.9m 100 m 50 pcs GY / WH / BL / BK ★ HOT Seller
IT-4060 40 × 60 mm IT-S-4060-□ (Slotted) / IT-N-4060-□ (Narrow) / IT-W-4060-□ (Solid) 2.0m / 2.9m 72 m 36 pcs GY / WH / BL / BK ★ HOT Seller
IT-4080 40 × 80 mm IT-S-4080-□ (Slotted) / IT-N-4080-□ (Narrow) / IT-W-4080-□ (Solid) 2.0m / 2.9m 48 m 24 pcs GY / WH / BL / BK Standard
IT-40100 40 × 100 mm IT-S-40100-□ (Slotted) / IT-N-40100-□ (Narrow) 2.0m / 2.9m 44 m 22 pcs GY / WH / BL / BK Deep Channel
IT-4545 45 × 45 mm IT-S-4545-□ (Slotted) / IT-N-4545-□ (Narrow) / IT-W-4545-□ (Solid) 2.0m / 2.9m 72 m 36 pcs GY / WH / BL / BK Standard
IT-4565 45 × 65 mm IT-S-4565-□ (Slotted) / IT-N-4565-□ (Narrow) 2.0m / 2.9m 60 m 30 pcs GY / WH / BL / BK Standard
IT-5030 50 × 30 mm IT-S-5030-□ (Slotted) / IT-N-5030-□ (Narrow) / IT-W-5030-□ (Solid) 2.0m / 2.9m 100 m 50 pcs GY / WH / BL / BK Standard
IT-5035 50 × 35 mm IT-S-5035-□ (Slotted) / IT-N-5035-□ (Narrow) / IT-W-5035-□ (Solid) 2.0m / 2.9m 88 m 44 pcs GY / WH / BL / BK Standard
IT-5050 50 × 50 mm IT-S-5050-□ (Slotted) / IT-N-5050-□ (Narrow) / IT-W-5050-□ (Solid) 2.0m / 2.9m 60 m 30 pcs GY / WH / BL / BK Core Standard
IT-5060 50 × 60 mm IT-S-5060-□ (Slotted) / IT-N-5060-□ (Narrow) / IT-W-5060-□ (Solid) 2.0m / 2.9m 60 m 30 pcs GY / WH / BL / BK Standard
IT-5080 50 × 80 mm IT-S-5080-□ (Slotted) / IT-N-5080-□ (Narrow) / IT-W-5080-□ (Solid) 2.0m / 2.9m 40 m 20 pcs GY / WH / BL / BK Heavy-Duty
IT-50100 50 × 100 mm IT-S-50100-□ (Slotted) / IT-N-50100-□ (Narrow) 2.0m / 2.9m 40 m 20 pcs GY / WH / BL / BK Deep Channel
IT-6040 60 × 40 mm IT-S-6040-□ (Slotted) / IT-N-6040-□ (Narrow) / IT-W-6040-□ (Solid) 2.0m / 2.9m 68 m 34 pcs GY / WH / BL / BK Standard
IT-6060 60 × 60 mm IT-S-6060-□ (Slotted) / IT-N-6060-□ (Narrow) / IT-W-6060-□ (Solid) 2.0m / 2.9m 48 m 24 pcs GY / WH / BL / BK Heavy-Duty
IT-6080 60 × 80 mm IT-S-6080-□ (Slotted) / IT-N-6080-□ (Narrow) / IT-W-6080-□ (Solid) 2.0m / 2.9m 32 m 16 pcs GY / WH / BL / BK Heavy-Duty Backbone
IT-60100 60 × 100 mm IT-S-60100-□ (Slotted) / IT-N-60100-□ (Narrow) 2.0m / 2.9m 32 m 16 pcs GY / WH / BL / BK Heavy-Duty
IT-6545 65 × 45 mm IT-S-6545-□ (Slotted) / IT-N-6545-□ (Narrow) / IT-W-6545-□ (Solid) 2.0m / 2.9m 50 m 25 pcs GY / WH / BL / BK Standard
IT-6565 65 × 65 mm IT-S-6565-□ (Slotted) / IT-N-6565-□ (Narrow) 2.0m / 2.9m 40 m 20 pcs GY / WH / BL / BK Heavy-Duty
IT-8040 80 × 40 mm IT-S-8040-□ (Slotted) / IT-N-8040-□ (Narrow) / IT-W-8040-□ (Solid) 2.0m / 2.9m 48 m 24 pcs GY / WH / BL / BK Heavy-Duty
IT-8060 80 × 60 mm IT-S-8060-□ (Slotted) / IT-N-8060-□ (Narrow) / IT-W-8060-□ (Solid) 2.0m / 2.9m 36 m 18 pcs GY / WH / BL / BK Heavy-Duty
IT-8080 80 × 80 mm IT-S-8080-□ (Slotted) / IT-N-8080-□ (Narrow) / IT-W-8080-□ (Solid) 2.0m / 2.9m 24 m 12 pcs GY / WH / BL / BK Heavy-Duty Backbone
IT-80100 80 × 100 mm IT-S-80100-□ (Slotted) / IT-N-80100-□ (Narrow) 2.0m / 2.9m 24 m 12 pcs GY / WH / BL / BK Heavy-Duty
IT-10050 100 × 50 mm IT-S-10050-□ (Slotted) / IT-N-10050-□ (Narrow) / IT-W-10050-□ (Solid) 2.0m / 2.9m 28 m 14 pcs GY / WH / BL / BK Large Infrastructure
IT-10060 100 × 60 mm IT-S-10060-□ (Slotted) / IT-N-10060-□ (Narrow) / IT-W-10060-□ (Solid) 2.0m / 2.9m 32 m 16 pcs GY / WH / BL / BK Large Infrastructure
IT-10080 100 × 80 mm IT-S-10080-□ (Slotted) / IT-N-10080-□ (Narrow) 2.0m / 2.9m 24 m 12 pcs GY / WH / BL / BK Large Infrastructure
IT-100100 100 × 100 mm IT-S-100100-□ (Slotted) / IT-N-100100-□ (Narrow) 2.0m / 2.9m 24 m 12 pcs GY / WH / BL / BK Large Infrastructure
※ Order Note: Replace [□] with desired color code: GY (Gray RAL7030), WH (White), BL (Blue), BK (Black). Standard length is 2.0m (-20); custom container-optimized 2.9m length (-29) available on request.
Zero Risk Evaluation

Request Your Free Sample Box

We believe testing physical products speaks louder than words. Order our standard sample box with cut sections, complete certificates, and technical test reports delivered to your desk in 3-5 days.

Claim Sample Box (Express to Door) * Sample express freight is 100% credited against your first commercial order.

What's Inside Your Sample Kit:

  • 8–10 Precision-Cut Profile Sections (15cm)
  • Both Standard Slotted & Narrow Slotted Samples
  • Solid Wall Trunking Sample
  • 4 Color Chips (Gray, White, Blue, Black)
  • Original UL94 V-0 & RoHS Inspection Reports
  • Full Printed Technical Data Sheet (TDS)
